Door Handles
SS-MP-543
SS-MP-543 · Sapphire Collection
MORTISE ON PLATE HANDLE
Key Highlights
- • Considered architectural proportions
- • Engineered for dependable movement
- • Coordinated finish suite
Available finishes

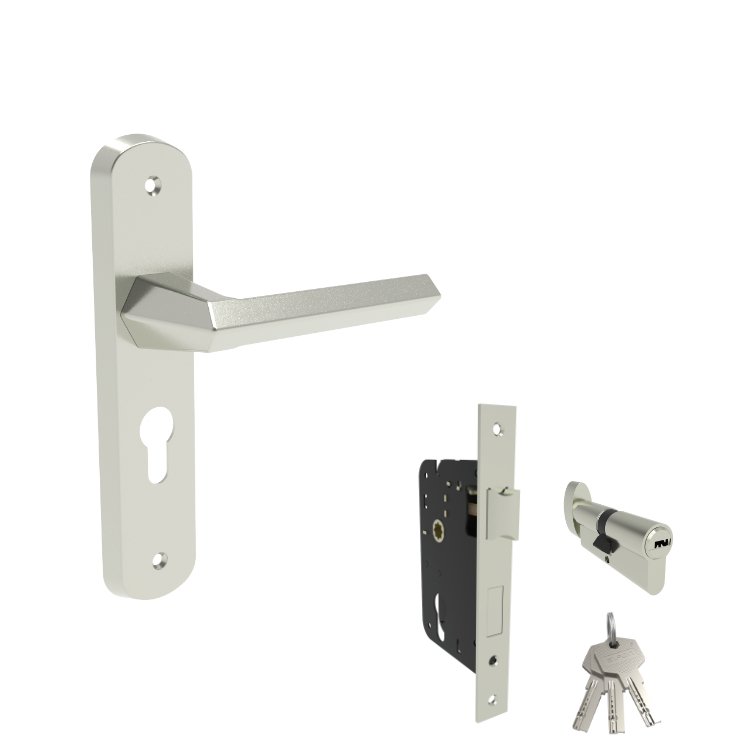

Selected finish: SSM
SS-MP-543 Description
MORTISE ON PLATE HANDLE
Material: High-Pressure Die-Cast Zinc Alloy
Collection: Sapphire Collection
| Product Code | SS-MP-543 |
|---|---|
| Collection | Sapphire Collection |
| Category | Door Handles |
| Material | High-Pressure Die-Cast Zinc Alloy |
| Handle Length | 140 mm |
| Rose Type / Diameter | Ø52 mm Round Rose |
| Available Finishes | SS, CP, AB, MBN, BLK, RG |
| Door Thickness Compatibility | 30 mm to 55 mm (Wooden, Flush & Metal Doors) |
| Spindle / Mechanism | 8x8 mm High-Torque Spring-Loaded Steel Spindle |
| Certified Life Cycle | 100,000 Cycles Tested & Certified |
| Standard Packing | 6 Sets per Master Box |
| Finishes | SSM, ABM, BLK, RG |

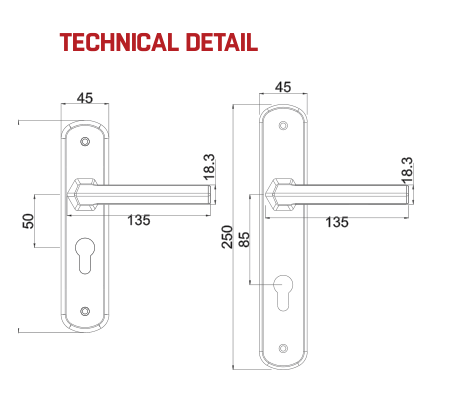

Need direct technical drawings or high-resolution test reports for this model?
