Door Handles
SO-MR-2004
SO-MR-2004 · Onyx Collection
MORTISE HANDLE
Key Highlights
- • Considered architectural proportions
- • Engineered for dependable movement
- • Coordinated finish suite
Available finishes
Selected finish: SS/CP
SO-MR-2004 Description
MORTISE HANDLE
Material: Solid Forged Brass
Collection: Onyx Collection
| Product Code | SO-MR-2004 |
|---|---|
| Collection | Onyx Collection |
| Category | Door Handles |
| Material | Solid Forged Brass |
| Handle Length | 148 mm |
| Rose Type / Diameter | Ø54 mm Round Rose |
| Available Finishes | SS/CP, AB/MBN, RGPVD, BMPVD |
| Door Thickness Compatibility | 30 mm to 55 mm (Wooden, Flush & Metal Doors) |
| Spindle / Mechanism | 8x8 mm High-Torque Spring-Loaded Steel Spindle |
| Certified Life Cycle | 100,000 Cycles Tested & Certified |
| Standard Packing | 6 Sets per Master Box |
| Finishes | SS/CP, AB/MBN, RGPVD/BMPVD, BMPVD/RGPVD |

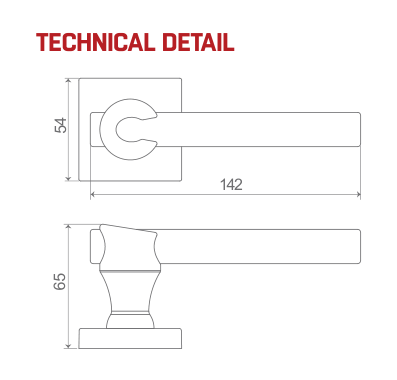

Need direct technical drawings or high-resolution test reports for this model?
